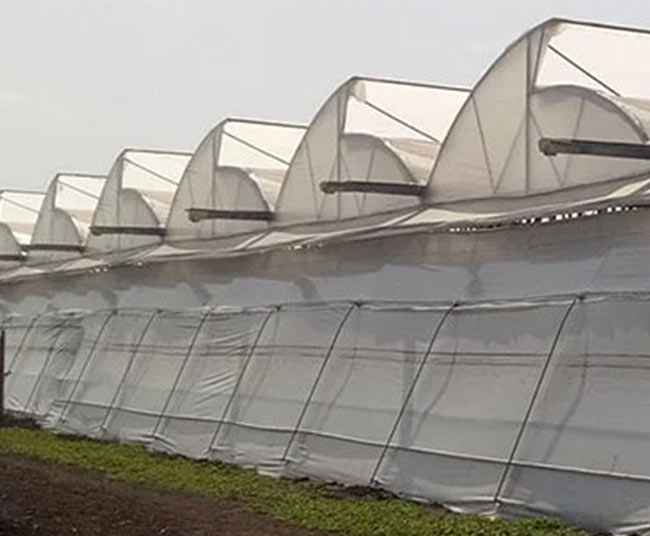

Naturally Ventilated Polyhouse
- Most Prefered polyhouse Design
- Year Round protection from climatic conditions
- Ideal for Commercial Cultivation
- High Structural Durability,load bearing and wind bearing capacity.
Technical Specifications
- Product Name: Naturaly Ventilated Polyhouse.
- Roof Type: Single vent.
- Available Size: 500m2 / 1000m2 / 2000m2 / 4000m2 / 8000m2
- Grid: 8 m x 4 m
- Gutter / Centre Height: 4.0 m / 6.5 m
- Hockey: 2m
- Top Ventilation: 0.8 to 1.0 m
- Side Ventilation: 3.5 M to 4.0 m
- Side Covering: Insect Net, 110 GSM with Apron Sheet
- Top Covering: 200 Micron Polyfilm, Shade net for second layer
- Second Leyer: Inside Sliding Net cover Available.
- Trellising System: 5mm,4mm Rope wire with 3mm Plastic wire
- Drip Irrigation: Inline drip irrigation system, Fogging or Sprinkler with filters

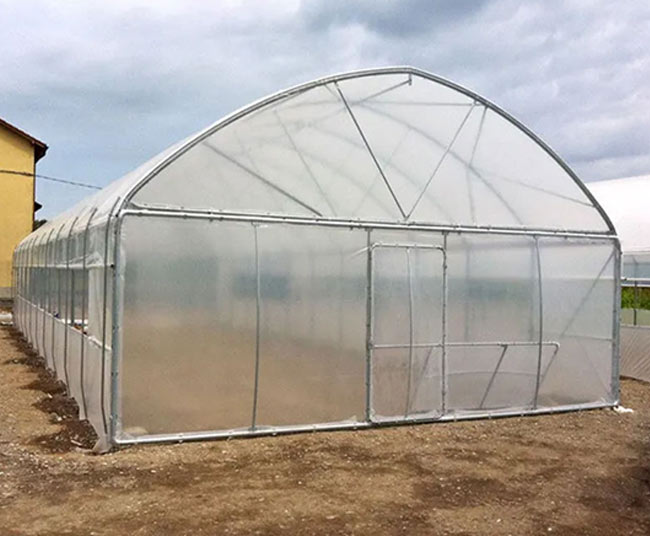

Dome Shaped Polyhouse
- Suitable for Tissue culture lab, cultivation of exotic vegetables &
- Good Ventilation and Space Utilization
- High Load bearing capacity and wind resistance
- Ideal for commercial
Technical Specifications
- Product Name: Dome Roof Poly house (DRPH).
- Roof Type: Doom Roof.
- Available Size: 500m2 / 1000m2 / 2000m2 / 4000m2 / 8000m2 / 12000m2
- Grid: 6 m x 4 m (NHB Guideline) , 6m x 6m , 4 m x 4m
- Side / Centre Height: 4.0m / 5.5m , 4.5m / 6.0m , 4.5m / 6.0m
- Hockey: 2.0m , 2.5 m , 3.0 m , 3.5 m
- Top Ventilation: 0.8 to 1.0 m
- Side Ventilation: 3.5 M to 4.0 m
- Side Covering: Insect Net, 110 GSM , Mono x Mono net with Apron 140GSM
- Second Leyer: Inside Sliding Net cover Available.
- Trellising System: 5mm,4mm Rope wire with 3mm Plastic wire
- Drip Irrigation: Inline drip irrigation system, Fogging System.
Your All-Season Growing Solution
Designed to maintain ideal climate conditions
for maximum yield and quality crops year-round.

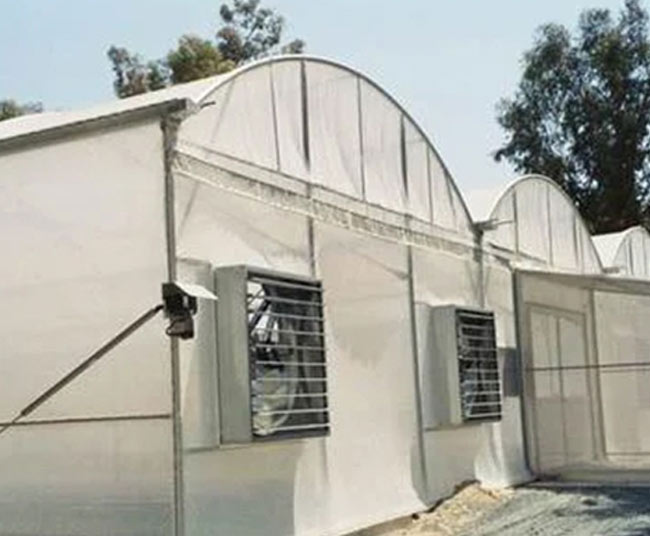

Fan Pad Polyhouse
- Suitable for Commercial vegetables, Tissue culture, and Seed
- Temperature, Sunlight and Humidity Control through Fan and Pad System
- Can Withstand Harsh Climatic Conditions
- Round the Year
- Customizable as per requirement

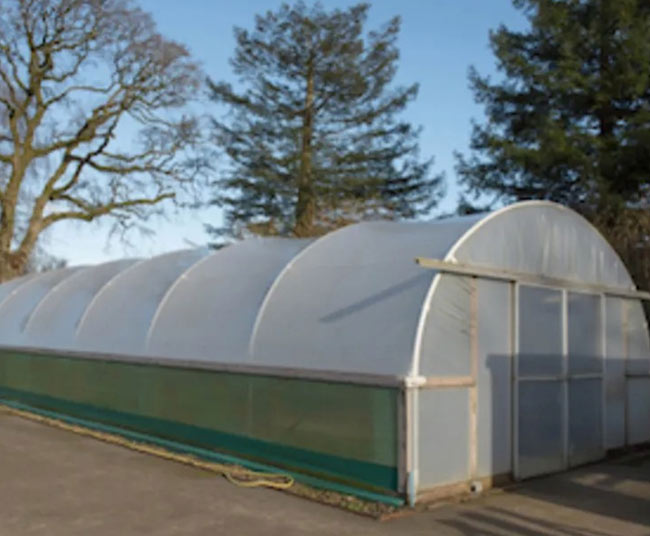

Tunnel Polyhouse-Single & Multispan
- Suitable for Tissue culture lab, cultivation of exotic vegetables &
- Allows for second layer sliding roof for optimum
- control of temperature, sunlight and
- Able to withstand harsh environmental conditions
Technical Specifications
- Product Name: Single/Multi Span Tunnels
- Roof Type: Doom Roof.
- Available Size: 500m2 / 1000m2 / 2000m2 / 4000m2 / 8000m2 / 12000m2
- Grid: 8 m x 3 m , 9 m x 3 m , 8 m x 4 m
- Side / Centre Height: 2.0 m / 4.5 m , 2.5 m / 6.0 m , 3.0 m / 6.5 m
- Hockey: 2.0m
- Side Covering: Insect Net, 110 GSM , Mono x Mono net , Bird Net , Polyfilm
- Top Covering: Polyfilm, Apron Fabric 160GSM with Insect net, Rain protection Net
- Drip Irrigation: Inline drip irrigation system, Fogging System.
